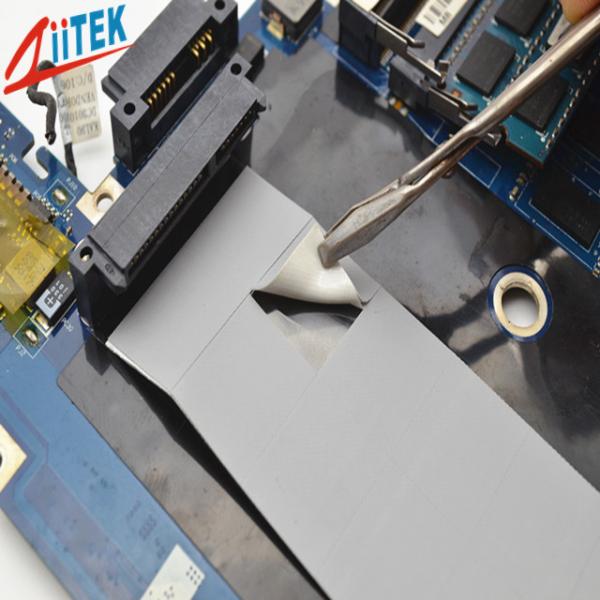

Custom Heat Transfer High Temperature Thermal Conductive Insulator Material Silicone Pad
The TIS®100-16-01 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.
Features:
> soft surface and goodthermal conductivity
> Excellent dielectric strength
> High voltage insulation, lowthermal resistance
> Tear-resistant, puncture-
> resistant
Applications:
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
> Set top boxes
> Audio and video components
> IT infrastructure
| Typical Properties of TIS®100-16-01 Series |
| Property | Value | Test Method |
| Color | Gray | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer /Fiberglass | ****** |
| Thickness range | 0.006inch (0.15mm) | 0.008~0.009inch (0.20~0.23mm) | 0.010~0.018inch (0.25~0.45mm) | ASTM D374 |
| Tensile Strength(MPa) | 30 | ASTM D412 |
| Density | 2.3 g/cc | ASTM D297 |
| Continuos Use Temp | -60 to 180℃ | ****** |
| Breakdown Voltage(V/mm) | 3000 | 4000 | 5000 | ASTM D149 |
| Dielectric Constant @ 1MHz | 5.5 | ASTM D150 |
| Volume Resistivity | 4.0X1012 Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | UL(E331100) |
| Thermal conductivity | 1.6W/m-K | ASTM D5470 |
Product Specification
Standard Thicknesses
0.006inch~0.018 (0.15~0.45mm)
Standard Sizes
12" x 160"(304mm x 48.76M)
The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.
Packaging Details & Lead time
The packaging of silicone insulation materials
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
